Product Description:
The UY1200 is the perfect answer for all of your battery charging
needs. This versatile charger can charge lead-acid batteries
(flooded, gel, or AGM) as well as lithium batteries (LiFePO4,
LiMn2O4, LiNiCoMnO2).
Experience the charging curves of the future with automatic
multi-stage charging curves that effectively extend battery life.
Our revolutionary charging profiles assure optimal performance and
longevity, distinguishing the UY1200 from the competition.
Our top priority is safety. Your batteries are in good hands since
they are equipped with modern charging protection systems such as
over-temperature, over-voltage, over-current, short circuit, and
reverse polarity safeguards.
Keep up to date with the LED indicators that show real-time
operational status. The current-fed half-bridge topology of the
UY1200 ensures stability, efficiency, and energy savings, ensuring
a dependable power source for your batteries.
The UY1200 provides remarkable efficiency and stability while being
eco-friendly, thanks to its MCU control and Pulse Frequency
Modulation (PFM) technology, while satisfying different charging
curve requirements across battery types.
The vivid voltage and current display provides convenience at a
glance. This charger, housed in a sleek aluminum alloy chassis, not
only emanates robustness but also features a handle design for
convenient transportation. The temperature-controlled clever fan
provides peak performance.
Select the feature that best meets your needs. While the default
mode provides seamless charging, advanced users can choose between
the CAN and RS485 communication interfaces for greater control.
The UY1200 will improve your battery charging experience. With its
cutting-edge features, sturdy design, and unrivaled performance,
it's the best solution for efficiently and effectively powering
your batteries.
Features:
| Charger Model: | UY1200 |
| Housing: | Aluminium Alloy |
| Max Power: | 1200W |
| Dimensions: | 263x150x90mm |
| AC Input: | 100-120Vac/200-240Vac,47~63 Hz |

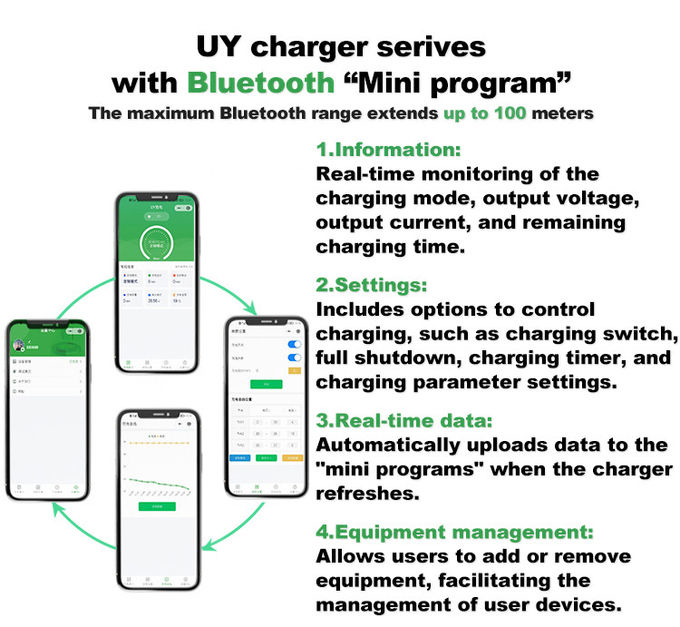

| Communication: | CAN, RS485,Bluetooth |
| Max Efficiency: | 89% |
| Operating Temperature: | -20 to 40℃ |
| Storage Temperature: | -40 to 70℃ |
| Noise: | <=40dB |
| Cooling: | Intelligent temperature control fan |
| Protection: | Over Current, Over Voltage, Over temperature, Short Circuit,
Reverse |
- Multi-Battery Compatibility: It handles lead-acid and various
lithium batteries, so your charge will always be up-to-date.
- Automatic Multi-Stage Charging: It transitions through stages so
you can get the most from your charging experience.
- Charging Protection: You won't have to worry about over-voltage,
over-current, or other potential risk.
- LED Status Indicators: You'll get real-time updates on charging
progress so you're always in the loop.
- Efficient Topology: Using current-mode half-bridge circuitry,
you'll get maximum efficiency from your charging time.
- MCU Control and PFM Technology: This combination provides high
efficiency and stability.
- Voltage and Current Display: This makes it easier to track your
current charge.
- Durable Aluminum Alloy Casing: Enhance the durability and heat
dissipation of the device.
Technical Parameters:
| UY1200 |
| Specification | DC Voltage(Max) | (CC:A)
Charging current | Light Turning(A) |
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid |
| 12V 50A | 12.6V/16.8V | 14.6V | 14.7V | 50A | 8%CC | 25%CC |
| 24V 35A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 35A |
| 36V 25A | 42V/46.2V | 43.8V | 44.1V | 25A |
| 48V 20A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 20A |
| 60V 15A | 63V/67.2V/71.4V | 73V | 73.5V | 15A |
| 72V 12A | 79.8V/84V | 87.6V | 88.2V | 12A |
| 84V 11A | 88.2V | 102.2V | 107.8V | 11A |
| 96V 10A | 100.8V | 109.5V | 117.6V | 10A |
| 108V 8A | 113.4V | 120.45V | 132.3V | 8A |
| 120V 6A | 126V | 131.4V | 147V | 6A |
Applications:
Marine and Boating
The UY1200 is an ideal choice for marine applications due to its
waterproof design. It provides reliable power for navigation and
onboard systems by charging batteries for boats, yachts, and other
marine equipment.
Recreational Vehicles
Campers, RVs, and trailers often need battery power for running
various appliances. The UY1200 features multi-bank charging
capability, which enables simultaneous charging of multiple
batteries, making the outdoor adventures more convenient.
Industrial Equipment
Manufacturing plants and industrial facilities use the UY1200 to
make sure their equipment is in working condition. It is compatible
with various battery types and includes protection mechanisms for
uninterrupted workflow.
Renewable Energy Systems
The UY1200 is a suitable charging solution for renewable energy
setups that use battery storage. It efficiently charges batteries
in solar energy systems, wind energy systems, and more,
facilitating sustainable power generation.
